Washers

واشر تخت

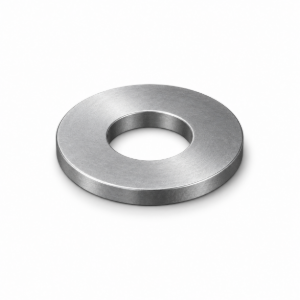

Picture for category واشر تخت

واشرهای استاندارد DIN

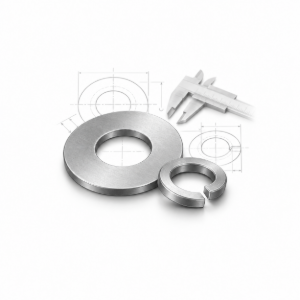

Picture for category واشرهای استاندارد DIN

واشر فنری

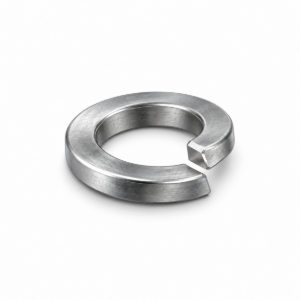

Picture for category واشر فنری

واشرهای استاندارد ASME

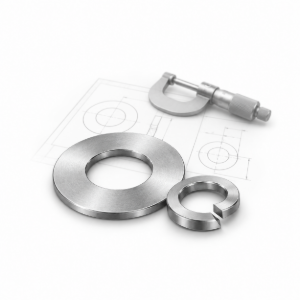

Picture for category واشرهای استاندارد ASME

واشر عمومی و صنعتی

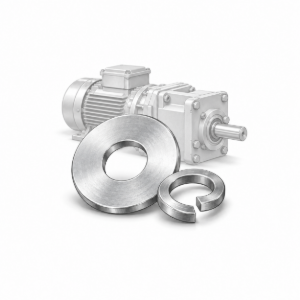

Picture for category واشر عمومی و صنعتی
View as Grid List
Sort by
Display per page
TTBolt DIN125

DIN 125 Plain Washer Type A M3 – Plain Carbon Steel – 200 HV

Standard: DIN 125 / ISO7089 Product Type: Plain Washer Type A Nominal Size: M3 Inner Diameter: 3.2 mm Outer Diameter: 7 mm Thickness: 0.5 mm Material: Carbon Steel Hardness Class: 200 HV Finish: Plain
2,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M1.6 – Hardened 38-45 HRC – Plain

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M1.6 Inside Diameter (A): 1.95–2.09 mm Outside Diameter (B): 4.7–5 mm Thickness (C): 0.5–0.7 mm Material: Steel Type / Hardness: Hardened 38-45 HRC Finish: Plain Estimated Weight: 0.072 g/pc
1,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M1.6 – Soft (As-Fabricated) – Plain

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M1.6 Inside Diameter (A): 1.95–2.09 mm Outside Diameter (B): 4.7–5 mm Thickness (C): 0.5–0.7 mm Material: Steel Type / Hardness: Soft (As-Fabricated) Finish: Plain Estimated Weight: 0.072 g/pc
1,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M10 – Hardened 38-45 HRC – Plain

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M10 Inside Diameter (A): 10.85–11.12 mm Outside Diameter (B): 27.48–28 mm Thickness (C): 2–2.8 mm Material: Steel Type / Hardness: Hardened 38-45 HRC Finish: Plain Estimated Weight: 9.601 g/pc
10,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M10 – Soft (As-Fabricated) – Plain

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M10 Inside Diameter (A): 10.85–11.12 mm Outside Diameter (B): 27.48–28 mm Thickness (C): 2–2.8 mm Material: Steel Type / Hardness: Soft (As-Fabricated) Finish: Plain Estimated Weight: 9.601 g/pc
10,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M12 – Hardened 26-45 HRC (HDG) – Hot Dip Galvanized

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M12 Inside Diameter (A): 13.3–13.57 mm Outside Diameter (B): 33.38–34 mm Thickness (C): 2.5–3.5 mm Material: Steel Type / Hardness: Hardened 26-45 HRC (HDG) Finish: Hot Dip Galvanized Estimated Weight: 17.655 g/pc
31,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M12 – Hardened 38-45 HRC – Plain

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M12 Inside Diameter (A): 13.3–13.57 mm Outside Diameter (B): 33.38–34 mm Thickness (C): 2.5–3.5 mm Material: Steel Type / Hardness: Hardened 38-45 HRC Finish: Plain Estimated Weight: 17.655 g/pc
18,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M12 – Hardened 38-45 HRC – Zinc Plated

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M12 Inside Diameter (A): 13.3–13.57 mm Outside Diameter (B): 33.38–34 mm Thickness (C): 2.5–3.5 mm Material: Steel Type / Hardness: Hardened 38-45 HRC Finish: Zinc Plated Estimated Weight: 17.655 g/pc
31,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M12 – Soft (As-Fabricated) – Plain

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M12 Inside Diameter (A): 13.3–13.57 mm Outside Diameter (B): 33.38–34 mm Thickness (C): 2.5–3.5 mm Material: Steel Type / Hardness: Soft (As-Fabricated) Finish: Plain Estimated Weight: 17.655 g/pc
18,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M14 – Hardened 26-45 HRC (HDG) – Hot Dip Galvanized

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M14 Inside Diameter (A): 15.25–15.52 mm Outside Diameter (B): 38.38–39 mm Thickness (C): 2.5–3.5 mm Material: Steel Type / Hardness: Hardened 26-45 HRC (HDG) Finish: Hot Dip Galvanized Estimated Weight: 23.309 g/pc
41,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M14 – Hardened 38-45 HRC – Plain

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M14 Inside Diameter (A): 15.25–15.52 mm Outside Diameter (B): 38.38–39 mm Thickness (C): 2.5–3.5 mm Material: Steel Type / Hardness: Hardened 38-45 HRC Finish: Plain Estimated Weight: 23.309 g/pc
23,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M14 – Hardened 38-45 HRC – Zinc Plated

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M14 Inside Diameter (A): 15.25–15.52 mm Outside Diameter (B): 38.38–39 mm Thickness (C): 2.5–3.5 mm Material: Steel Type / Hardness: Hardened 38-45 HRC Finish: Zinc Plated Estimated Weight: 23.309 g/pc
41,000 ریال
TTBolt ASMEB18.22M

ASME B18.22M Metric Plain Washer — Regular Series M14 – Soft (As-Fabricated) – Plain

Standard: ASME B18.22M Product Type: Metric Plain Washer — Regular Series Nominal Size: M14 Inside Diameter (A): 15.25–15.52 mm Outside Diameter (B): 38.38–39 mm Thickness (C): 2.5–3.5 mm Material: Steel Type / Hardness: Soft (As-Fabricated) Finish: Plain Estimated Weight: 23.309 g/pc
23,000 ریال

Industrial washers are fastening components installed beneath a bolt head or nut to distribute bearing load, protect the joint surface and support the intended behavior of a bolted joint. The correct washer must be selected according to its standard, nominal size, dimensions, material, finish and service conditions.

Types of industrial washers

The TTBOLT washer catalog is organized into flat or plain washers, regular helical spring-lock washers and other specialty washer families as they are added. Each washer form is placed in a separate subcategory so that different dimensional standards and product types are not mixed.

Industrial washer selection guide

Before ordering, check the applicable dimensional standard, nominal size, inside diameter, outside diameter, thickness, material grade, hardness and coating. For electroplated high-carbon spring washers, hydrogen-embrittlement controls may be required. The word “lock” in a washer name does not by itself guarantee permanent locking; joint preload, vibration and operating conditions must also be evaluated.
